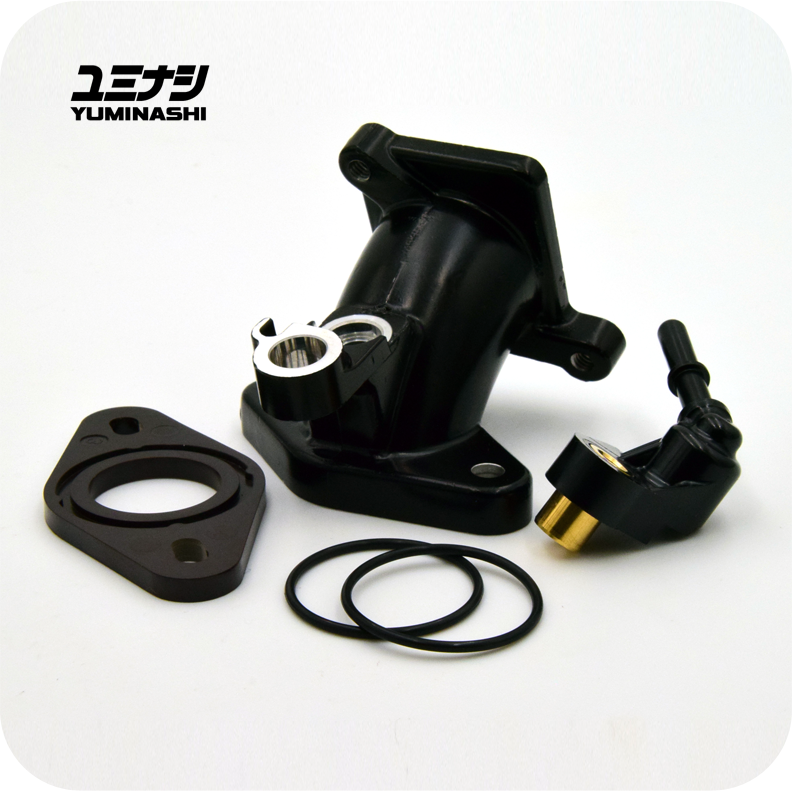

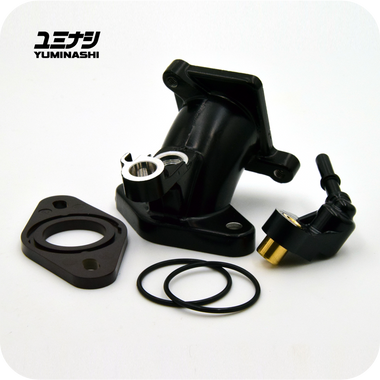

● YUMINASHI K26 TYPE-1B 28MM MANIFOLD (MSX/GROM/Z125 MONKEY/...) FOR B-TYPE INJECTOR
● Choosing the “right” intake manifold for an engine is just as important as choosing the right camshaft, cylinder head and compression ratio, since all of these components have to complement one another and work in harmony together otherwise the engine will never realize its true power potential.
● This Yuminashi Type-1B manifold is a K26 "125-type" throttle body, plug & play ready to be installed on a 28mm throttle body (1.18110236 inches) and B-type injector.
● The exact diameter of this Type-1 manifold at throttle body side is 28.6mm (1.12598425 inches), the diameter at the intake port side is 27.6mm (1.08661417 inches).
● This manifold is mentioned to be used in combination with a 125cc engine type throttle body such as the MSX/GROM125 or the Z125 MONKEY throttle body.
※ The special Center Bolts to install a 28mm 110cc KWW type throttle body upgrade set LINK are no longer included in the set!!!!!!
※ Part number 17110-K26-EVO has been superseded by part number 17110-K26-28276L
※ The bolts distance from a "125-type throttle body" are from center to center 64.4mm to 64.5mm
※ Keep in mind that this manifold is a B-type manifold mentioned for a B-type injector.
If your bike is produced before 2013, then there is a big chance you will have a A-type manifold and injector installed.
If this is the case, then you can find the correct B-type injectors for this manifold with this LINK, and the wire loom to connect the B-type injector to your A-type injector wire harness you can find with this LINK.
● THE YUMINASHI K26 TYPE-1B MANIFOLD IS MENTIONED TO BE INSTALLED ON:
