30MM MANIFOLD K26 TYPE-1B (MSX/GROM/Z125 MONKEY/...)

Hover over image to zoom

YUMINASHI
฿1,275.00
SKU:
17110-K26-3027F
Weight:
180.00 Grams
Availability:
Fast moving item, ships the next day (except on Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

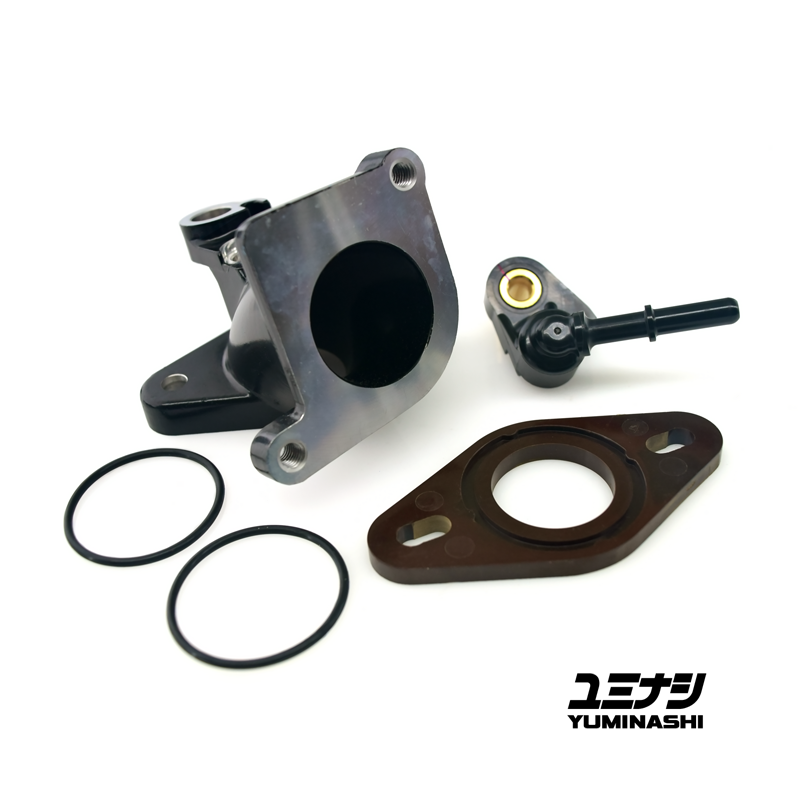

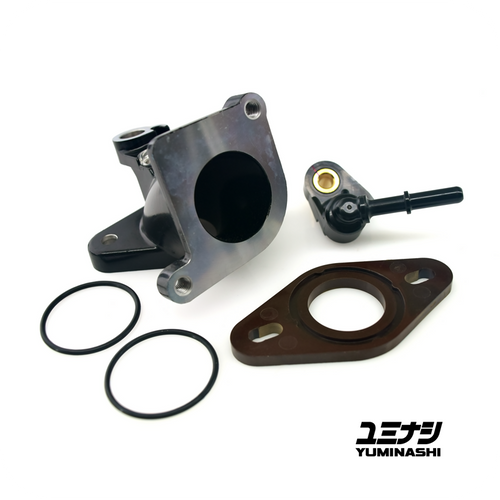

buying-2-discount-300pxl-.png● YUMINASHI K26 TYPE-1B 30MM MANIFOLD (MSX/GROM/Z125 MONKEY/...) FOR B-TYPE INJECTOR

● Choosing the “right” intake manifold for an engine is just as important as choosing the right camshaft, cylinder head and compression ratio, since all of these components have to complement one another and work in harmony together otherwise the engine will never realize its true power potential.

● This Yuminashi Type-1B manifold is a K26 "125-type" throttle body, plug & play ready to be installed on a 30mm throttle body (1.18110236 inches) and B-type injector.

● The exact diameter of this Type-1 manifold at throttle body side is 30mm (1.18110236 inches), the diameter at the intake port side is a slightly oval shape with at the short side a of diameter 25.75mm (1.01377953 inches) and the long side a diameter of 27.8mm (1.09448819 inches).

● This manifold is mentioned to be used in combination with a "125cc engine type" throttle body such as the MSX/GROM125 or the Z125 MONKEY throttle body.

 The special Center Bolts to install a 28mm 110cc KWW type throttle body upgrade set LINK are no longer included in the set!!!!!!

 Part number 17110-K26-EVO has been superseded by part number 17110-K26-28276L

  The bolts distance from a "125-type throttle body" are from center to center 64.4mm to 64.5mm

 Keep in mind that this manifold is a B-type manifold mentioned for a B-type injector.
If your bike is produced before 2013, then there is a big chance you will have a A-type manifold and injector installed.
If this is the case, then you can find the correct B-type injectors for this manifold with this LINK, and the wire loom to connect the B-type injector to your A-type injector wire harness you can find with this LINK

 ● THE YUMINASHI K26 TYPE-1B MANIFOLD IS MENTIONED TO BE INSTALLED ON:

HONDA:

  • Z125 MONKEY (2018- )
  • MSX125/GROM 125 (2013- )
  • MSX125 SF/GROM125 SF (2016- )
  • BIZ 125 (2014 -))
  • BLADE 125 FI / SUPPRA X 125 PGM-FI
  • C110 SUPER CUB (JA10) (2012 - 2017) **Need to install optional center bolts
  • C110 SUPER CUB (2018- )   **Need to install optional center bolts
  • CC110 CROSS CUB 110 (2018- ) **Need to install optional center bolts
  • C125 SUPER CUB (2018 - )
  • CT125 HUNTER CUB (2020- )
  • CRF110F PGM-FI (2018- )   **Need to install optional center bolts
  • DREAM 110i (2011 - 2018) **Need to install optional center bolts
  • INNOVA 125i (2007 - 2014)
  • WAVE 110i (2011 - 2013) **Need to install optional center bolts
  • WAVE 110i (2013 - 2017) **Need to install optional center bolts
  • WAVE 110i (2017- )         **Need to install optional center bolts
  • WAVE 125i (2014 - 2015)
  • WAVE 125i (2015 - 2017)
  • WAVE 125i (2017- )

budget-logo-2.png SMART SHOPPER TIP:

        BUYING MORE THEN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!


   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & 30 pieces of this product will receive a 25% DISCOUNT
