39.4MM TYPE-1 THROTTLE BODY UPGRADE SET (CRF250/300L/M...)

Hover over image to zoom

  • YUMINASHI 39.4MM TYPE-1 THROTTLE BODY UPGRADE SET (CRF250L CRF300L / MOTARD / RALLY...) (16410-KYJ-394)
  • YUMINASHI 39.4MM TYPE-1 THROTTLE BODY UPGRADE SET (CRF250L CRF300L / MOTARD / RALLY...) (16410-KYJ-394)
  • YUMINASHI 39.4MM TYPE-1 THROTTLE BODY UPGRADE SET (CRF250L CRF300L / MOTARD / RALLY...) (16410-KYJ-394)
  • YUMINASHI 39.4MM TYPE-1 THROTTLE BODY UPGRADE SET (CRF250L CRF300L / MOTARD / RALLY...) (16410-KYJ-394)
  • YUMINASHI 39.4MM TYPE-1 THROTTLE BODY UPGRADE SET (CRF250L CRF300L / MOTARD / RALLY...) (16410-KYJ-394)
  • YUMINASHI 39.4MM TYPE-1 THROTTLE BODY UPGRADE SET (CRF250L CRF300L / MOTARD / RALLY...) (16410-KYJ-394)
YUMINASHI
฿2,799.00
SKU:
16410-KYJ-394
Weight:
570.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

buying-2-discount-300pxl-.png● 39.4MM TYPE-1 PGM-FI THROTTLE BODY UPGRADE SET (16410-KYJ-394)

● Yuminashi/Keihin 39.4mm Type-1 throttle body upgrade set for the 250 and 300 engines, which will upgrade the CRF250L throttle body from 37mm to 39.4mm, and the CBR250R/CBR300R throttle body from 39mm to 39.4mm...

● This throttle body accepts all your stock 250 and 300 sensors, the bore is slightly larger compared to the stock CBR250R throttle body, and the venturi is polished and machined in to a stack to create an optimized velocity which is perfect to be used with the Hoyaki 78mm (LINK) and 79mm (LINK) big bore piston.

● This throttle body accept also the Yuminashi TP/IAT/MAP Sensor Block for MSX/GROM - Z125 Monkey - C125 Super Cub - CT125 Hunter Cub - etc (LINK).
 We have also the 39.4mm Type-2 version with a flat, horizontal bracket for the throttle cable, which is more convenient to be used in these compact bikes as pointed out above, perfect also for a CBR250/300R engine swap in these bikes...
 We also have the size 40.5mm (LINK) and 42.5mm (LINK) available if 39.4mm would be is too small for your build.

● This throttle body upgrade set is perfect to be installed with a high performance camshaft and can be used in combination with the stock air filter box or a higher flowing air filter type (LINK).

 You can find the Business To Business (B2B) discounts below on this product page.
 If you need larger injectors, then we have them available at the page with this LINK.

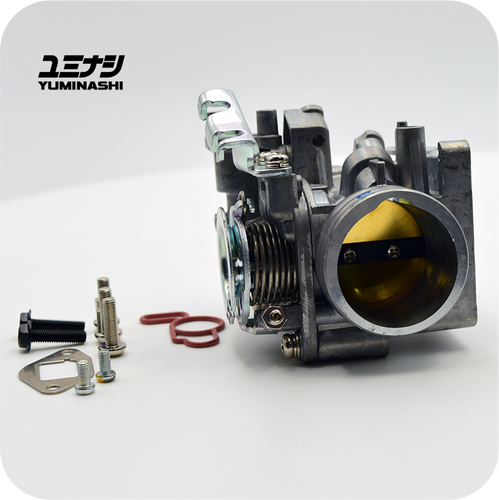

● THIS 39.4MM TYPE-1 PGM-FI THROTTLE BODY UPGRADE SET (16410-KYJ-394) INCLUDES:

  • 1 X 39.4MM KEIHIN/YUMINASHI THROTTLE BODY
  • 2 X SCREW, TORX, 5X5.7 (16081-KYJ-901)
  • 1 X SCREW, TORX, 5X17 (16082-KYJ-901)
  • 1 X STAY, HARNESS CLAMPER (16196-HP6-A01)
  • 1 X SCREW, PAN, 5X10 (93500-05010-1H)
  • 2 X BOLT, FLANGE 5X20 (16080-KPH-701)
  • 1 X STAY/BRACKET, THROTTLE CABLE (16169-MFR-671)
  • 2 X SCREW-WASHER, 5X12 (939.492-05012-18)
  • 1 X PLATE, IDLE AIR CONTROL VALVE (16432-HP5-601)
  • 2 X SCREW, TORX (16433-HN8-A61)
  • 1 X O-RING, 17.8X1.9 (16435-HN8-A61)


● THIS 39.4MM PGM-FI THROTTLE BODY UPGRADE SET IS THE CORRECT SET TO BE INSTALLED ON:

HONDA:

  • CRF250L / CRF250M (2013 - 2017)
  • CRF250L (2017 - 2019)
  • CRF250L / CRF250L RALLY (2017- )
  • CRF300L / CRF300L RALLY (2021- )

budget-logo-2.png SMART SHOPPER TIP:



BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
