55MM / 15-PIN, TUNER EDITION PISTON (SEMI-DOME)

Hover over image to zoom

  • YUMINASHI 55MM / 15-PIN, TUNER EDITION PISTON (SEMI-DOME) (13100-015-550B)
  • YUMINASHI 55MM / 15-PIN, TUNER EDITION PISTON (SEMI-DOME) (13100-015-550B)
YUMINASHI
฿1,615.00
SKU:
13100-015-550B
Weight:
196.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

buying-2-discount-300pxl-.png● 55MM / 15-PIN, TUNER EDITION PISTON (SEMI-DOME) (13100-015-550B)

● With the 55mm 15mm pin Tuner Edition piston you get a piston where you as engine tuner have the total freedom to create a custom small or big 2-valve, 3-valve, or 4-valve piston for basically any motorcycle Brand and motorcycle/scooter type, and this totally based on your needs and specifications.

(If you scroll down you can see an entire oversize detail list of scooters and motorcycles who can install this piston...).

● The 55mm piston is also a oversize piston which can be used in many 125cc bikes as you can see if you scroll down in the list below.

 If you have an Air Cooled 2-Valve scooter engine such as the Scomadi TL125 / TT125i, Lambretta V125, Peugeot D'elight 115, Tweet 125/150, Django 125/150,  Sum Up 125 or the Royal Alloy 2-valve or 4-valve air cooled engines, then the stock 125cc cylinder can be used to bore it up until 55mm to install this piston without a new sleeve...


● The 55mm piston size with 15 pin is also very interesting to be installed on the 2-Valve Euro-4 Honda engine such as the MSX/GROM125 (2013-2021), Z125 Monkey (2018-2021), C125 Super Cub, CT125 Hunter Cub etc... and the Kawasaki Z125, KSR110, KLX110, CHEER and KAZE with the forged 15-PIN conrod (LINK), and to machine the piston for a 2-valve or a 4-valve engine set up.

● The benefit of installing the 55mm piston on the 125cc Honda engines mentioned above is that you don't need to modify your crankcase. 63.5mm cylinder bore diameter is about the limit you can go on the stock crankcases.

● If you want to machine your crankcases to go superbore, then our experience with these 2-Valve air cooled engines is that 66mm is the largest bore we would recommend as limit to have a very strong and still reliable engine, where you still can control the temperature with a large oil cooler if you have a big valve cylinder head which is ported the right way.

● This piston can be installed on the stock stroke crankshaft (not possible with a 15 pin on most of the Honda and Kawasaki Engines without changing the conrod), with perhaps a longer connecting rod which creates more higher RPM horsepower, or in combination with a offset crankpin to stroke your engine up and this totally based on your personal needs.

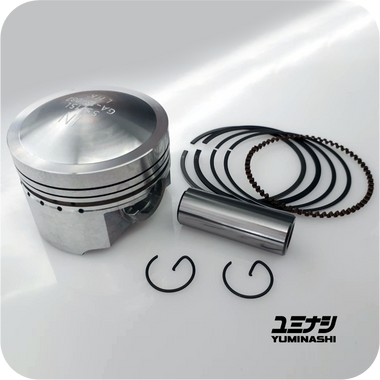

● This Tuner Edition piston kits come complete with Rings, Pin and Cir clips.

 Keep in mind that a 15mm piston pin piston need to be installed with a 15mm connecting rod, so if your stock engine doesn't have a 15mm piston pin, then please check if we have a 15mm piston pin conrod available for your engine before you order!...

 Check if this 56mm piston size fit between your cylinder studs before you order!...


● SPECIFICATIONS: (CHECK BEFORE YOU ORDER!)


  • A= 22.40MM
  • B= 28.96MM
  • C= 16.16MM
  • D= 55MM
  • E= 15MM (=Stock piston pin size for Aprilia, Lambretta, Scomadi, Royal Alloy, Yamaha Mio115, Nouvo115, TTX115, Fino115, FILANO 115, D'ELIGHT 115 & GY6 engines (Most Honda 100cc-160cc Honda engines need to install a 15mm pin conrod!))

budget-logo-2.png SMART SHOPPER TIP:

        BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & 100 pieces of this product will receive a 25% DISCOUNT




● SCOOTER ENGINES

● STD PISTON (STD) SIZE FOR:

  • KAWASAKI CHEER 112 (2-VALVE / AIR COOLED) (Bore/Stroke: 53.0mmx50.6mm 111.58cc)
  • KAWASAKI KAZE 112 (2-VALVE / AIR COOLED) (Bore/Stroke: 53.0mmx50.6mm 111.58cc)

● 2.6MM OVERSIZE PISTON (2.60) SIZE FOR:

  • HONDA AIR BLADE 125 (2020- ) (2-VALVE / LIQUID COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA FORZA 125 (2015-2021) (4-VALVE / LIQUID COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA LEAD 125 (2015-2017) (4-VALVE / LIQUID COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA CLICK125i/VARIO 125i (2012-2021) (2-VALVE / LIQUID COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA PCX125 V1/LED/SMART KEY/DIGITAL (2009-2021) (2-VALVE / LIQUID COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA SH125 (2014-2020) (4-VALVE / LIQUID COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA SH125 MODE (2014- ) (4-VALVE / LIQUID COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • LAMBRETTA V125 SPECIAL (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • LAMBRETTA V125 SPECIAL FLEX (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • PEUGEOT DJANGO 125 (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • PEUGEOT TWEET 125 (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • ROYAL ALLOY GP125 (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • ROYAL ALLOY GT125 (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • ROYAL ALLOY TG125 (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • SCOMADI TL125 (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • SCOMADI TECHNICA 125i (Bore/Stroke: 52.4mmx57.8mm 124.58cc)
  • SCOMADI TT125i (Bore/Stroke: 52.4mmx57.8mm 124.58cc)

● 5MM OVERSIZE PISTON (6.00) SIZE FOR:

  • YAMAHA D’ELIGHT 115 (2-VALVE / AIR COOLED) (Bore/Stroke: 50.0mmx57.9mm 113.63cc)
  • YAMAHA FINO 115 (2-VALVE / AIR COOLED) (Bore/Stroke: 50.0mmx57.9mm 113.63cc)
  • YAMAHA FILANO 115 (2-VALVE / AIR COOLED) (Bore/Stroke: 50.0mmx57.9mm 113.63cc)
  • YAMAHA MIO 115 (2-VALVE / AIR COOLED) (Bore/Stroke: 50.0mmx57.9mm 113.63cc)
  • YAMAHA NOUVO 115 (2-VALVE / AIR COOLED) (Bore/Stroke: 50.0mmx57.9mm 113.63cc)
  • YAMAHA TTX115 (2-VALVE / AIR COOLED) (Bore/Stroke: 50.0mmx57.9mm 113.63cc)



● MOTORCYCLE ENGINES:

● 1MM OVERSIZE PISTON (1.00) SIZE FOR:

  • YAMAHA T-135 V1 (4-VALVE / LIQUID COOLED) (Bore/Stroke: 54.0mmx58.7mm 134.37cc)
  • YAMAHA T-135 V2 (4-VALVE / LIQUID COOLED) (Bore/Stroke: 54.0mmx58.7mm 134.37cc)

● 2MM OVERSIZE PISTON (2.00) SIZE FOR:

  • KAWASAKI KLX110 (2-VALVE / AIR COOLED) (Bore/Stroke: 53.0mmx50.6mm 111.58cc)
  • KAWASAKI KSR110 (2-VALVE / AIR COOLED) (Bore/Stroke: 53.0mmx50.6mm 111.58cc)
  • KAWASAKI DRZ110 (2-VALVE / AIR COOLED) (Bore/Stroke: 53.0mmx50.6mm 111.58cc)
  • SUZUKI DRZ110 (2-VALVE / AIR COOLED) (Bore/Stroke: 53.0mmx50.6mm 111.58cc)

 ● 2.6MM OVERSIZE PISTON (2.60) SIZE FOR:

  • HONDA BLADE 125 FI / SUPRA X 125 PGM-FI (2013-2021) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA C125 SUPER CUB (2018/’19/’20) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA CC125 CROSS CUB (2020- ) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA CT125 HUNTER CUB (2020- ) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA MSX125/GROM125 – MSX125 SF/ GROM125 SF (2013-2021) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA WAVE125 / INNOVA125 (CARBURETOR) (2003-2007) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA WAVE125i / INNOVA125i (PGM-FI / OLD) (2007-2014) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA WAVE125i / INNOVA125i (PGM-FI) (2014-2021) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)
  • HONDA Z125 MONKEY (2018/’19/’20) (2-VALVE / AIR COOLED) (Bore/Stroke: 52.4mmx57.9mm 124.8cc)

 ● 3MM OVERSIZE PISTON (4.00) SIZE FOR:

  • HONDA CT110 TRAIL (2-VALVE / AIR COOLED) (Bore/Stroke: 52mmx50mm 105cc)(1980- )
