BILLET ALUMINIUM ROCKER ARM SET (CRF110-125/WAVE110i/C110 SUPER CUB)

Hover over image to zoom

  • YUMINASHI BILLET ALUMINIUM ROCKER ARM SET (CRF110-125/WAVE110i/C110 SUPER CUB) (14430-GCC-900R)
  • YUMINASHI BILLET ALUMINIUM ROCKER ARM SET (CRF110-125/WAVE110i/C110 SUPER CUB) (14430-GCC-900R)
YUMINASHI
฿2,475.00
SKU:
14430-GCC-900R
Weight:
70.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

Sorry but this item is currently unavailable. Please check back at a later stage.

 Product Description

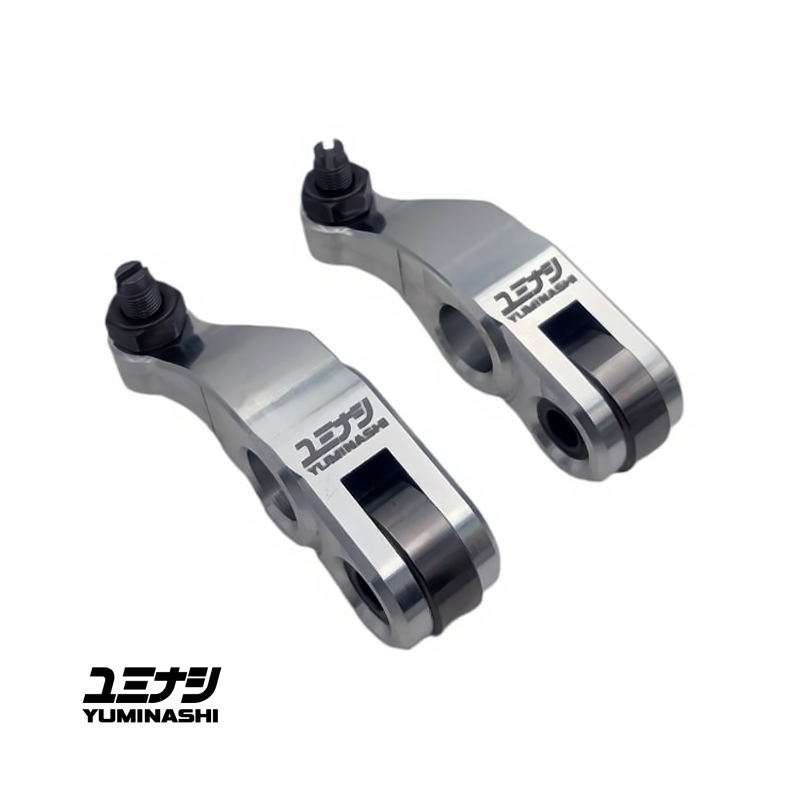

buying-2-discount-300pxl-.png● BILLET ALUMINIUM 7075 T6 ROCKER ARM SET (2PCS/SET) (CRF110-125/WAVE110i/C110 SUPER CUB) (14430-GCC-900R).

● This Billet Aluminium Rocker Arm Set can be installed on CRF125F and on almost all typical 110i engines.

● The 14430-GCC-900R 7075 T6 Billet Aluminium Rocker Arm set comes complete with the 2 stock Honda tappet adjust screws, and 2 tappet adjusting nuts installed.

● THIS SET INCLUDES:

  • 2 x BILLET ALUMINIUM ROCKER ARMS
  • 2 x TAPPET ADJUSTING BOLTS (STD)
  • 2 x TAPPET ADJUSTNG NUTS

 If you have a high lift camshaft installed, and the thread of the stock tappet adjusting screw isn't long enough, then we have an optional SPL longer thread version available with this LINK

● WHAT'S THE BENEFIT, WHY SHOULD I USE THESE?

● Stuck between the opposing forces of a valve spring and the cam lobe, and responsible for multiplying the motion from the cam lobe onto the valve stem, a rocker arm is one of the most highly stressed components in the entire valvetrain.
Current trends such as steeper cam lobe profiles, stiffer valve springs, and higher rpm only compound the stresses.

● Reducing the weight of the rockers reduces the reciprocating mass of the valvetrain.

● Higher rpms require stiffer valve springs and/or multiple valve springs which place greater loads on the rockers and cam lobes.
So reducing valvetrain weight means you can achieve the same rpm with less spring pressure, less friction and less wear.

● For engine applications that demand a step up, replacing the stock rockers with aluminum roller rockers will typically produce a gain of horsepower with the same lift ratio, and even more of a power gain with a higher lift ratio.



● THIS BILLET ALUMINIUM ROCKER ARM SET 14430-GCC-900R CAN BE INSTALLED ON

HONDA:

CRF110:

  • 2013 / CRF110FD / CRF110R AC
  • 2014 / CRF110FE / CRF110R AC
  • 2015 / CRF110FE / CRF110FF / CRF110R AC
  • 2016 / CRF110FE / CRF110FG / CRF110R AC
  • 2017 / CRF110FH
  • 2018 / CRF110FH / CRF110FJ / CRF110R A / CRF110R AC
  • 2019 / CRF110F / AC CLUTCH
  • 2019 / CRF110F A CLUTCH (FUEL INJECTION)
  • 2020 / CRF110F AC / CRF110F CLUTCH
  • 2020 / CRF110F A (FUEL INJECTION)

CRF125F:

  • 2014 / CRF125F AC / CRF125FB AC
  • 2015 / CRF125F AC / CRF125FB AC
  • 2016 / CRF125F AC / CRF125FB AC
  • 2017 / CRF125F AC / CRF125FB AC
  • 2018 / CRF125F A / CRF125F AC / CRF125FB A / CRF125FB AC
  • 2019 / CRF125F A / CRF125F AC / CRF125FB A / CRF125FB AC
  • 2020 / CRF125F A / CRF125F AC / CRF125FB A / CRF125FB AC

CROSS CUB 110:

  • 2013 / NBC110XD
  • 2014 / NBC110XD
  • 2015 / NBC110XD
  • 2016 / NBC110XD
  • 2017 / NBC110XD
  • 2018 / NBC110XJ

CZ-i 110:

  • 2009 -

SUPER CUB 110 PRO:

  • 2012 / NBC110BNC
  • 2013 / NBC110BNC
  • 2014 / NBC110BNC
  • 2015 / NBC110BNC
  • 2018 / C110BNJ / C110JJ / C110JK (SPECIAL 60TH)

SUPER CUB 110 PRO スーパーカブ:

  • 2012 / NBC110C
  • 2013 / NBC110C
  • 2014 / NBC110C
  • 2015 / NBC110BNG_MD (TYPE J)
  • 2016 / NBC110BNG
  • 2016 / NBC110BNG_MD (TYPE J)
  • 2017 / NBC110BNG_MD (TYPE J)
  • 2017 / NBC110G
  • 2017 / NBC110BNG (TYPE J)

WAVE110:

  • 2011 / AFS1101SHC (FRONT DISK BRAKE)
  • 2012 / AFS1102SHC (FRONT DISK BRAKE)
  • 2013 / AFS1102SHC (FRONT DISK BRAKE)
  • 2013 / AFS1102SHC (FRONT DISK BRAKE) NF110

WAVE110i:

  • 2011 / AFS110KSFB (FRONT DISK BRAKE / KICK START)
  • 2011 / AFS110MSFB (FRONT DISK BRAKE / E-START)
  • 2011 / AFS110KSFB_TH (FRONT DRUM BRAKE / KICK START)
